Quick Details

  • Condition: New
  • Application: ROPE ,YARN,FISHING NET ETC
  • Type: Twisting Machine, ACS-T2.1
  • Production Capacity: 20m/min
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ROBTEAM
  • Model Number: ACS-T2.1 AS7738
  • Spinning Method: Ring Spinning
  • Automatic: Yes
  • Dimension(L*W*H): 5500*1320*2080mm
  • Weight: 4200kgs
  • Power(W): 14.3kw
  • Certification: CE,ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Spindle No.: 12,24,30-42
  • Spindle pitch: 180-340mm
  • Ring size: 254mm8.1mm or as per customer's request
  • Lifting tranverse: 300-350mm
  • Spindle speed: 180-2100rpm
  • Lay direction: S/Z
  • Bobbin winding capacity: 0.9-11kgs
  • Twist range: 15-620tpm
  • Drive motor power: 11-18.5kw

Packaging & Delivery

Packaging Details 1 set multifilament yarn ,cotton thread doubling and twsiting making machine strectched by film or according your request
Delivery Time 1 SET Twine String twisting machine for yarn in 30 days

multifilament yarn ,cotton thread doubling and twsiting making machine

Our Advantages
  • Full automatic control system ,PLC and touch screen .

double twist stranding twister twister

  • Tuning rope diameter no need change the gear.
  • Twisting can do fine tuning on touch screen without stop the machine ,for more, no need change any parts on the machine
  • Even no experiences people also can learn quick and easy operating , 1 person can control many sets in different rope diameter.
Product Description

twisting machine  Performance and Characteristics

This machine could process all kinds of strings for chemical filament, textured yarns, glass fiber, fishing net, twine, wool, fabric cord, cotton yarn, carpet, canvas and etc.

Main Technical Parameters:

type

ACS-T10254

ACS-T12250

spindle amount

24;30-42

26

spindle pitch

340

350mm

spec of ring

φ254×38.1mm

φ250×400mm

Ring Lift

300-350

300-350

spindle speed

1800-2100

1500-1800rpm

direction of lay

S/Z

S/Z

Bobbin rewinding capacity

7000-11000g

7000-12000g

Twist Range

15-405

15-405

spindle motor power

11kw

11kw

Dia. of roller

φ61 φ80

φ61 φ80

Roller motor power

1.1kw×2sets

1.1kw×2sets

Lifting motor power

1.1kw

1.1kw

overall dimension

5495×1320×2080

12000×1320×2080

Application

yarns

21 pcs 5 - 45 strands

21 pcs 5 - 45 strands

fiber

1500D-6000D fiber

1500D-6000D fiber

Polyethylene

36fe×10-40 strands PE twisting or strands twisting

36fe×10-40 PE twisting or strands twisting

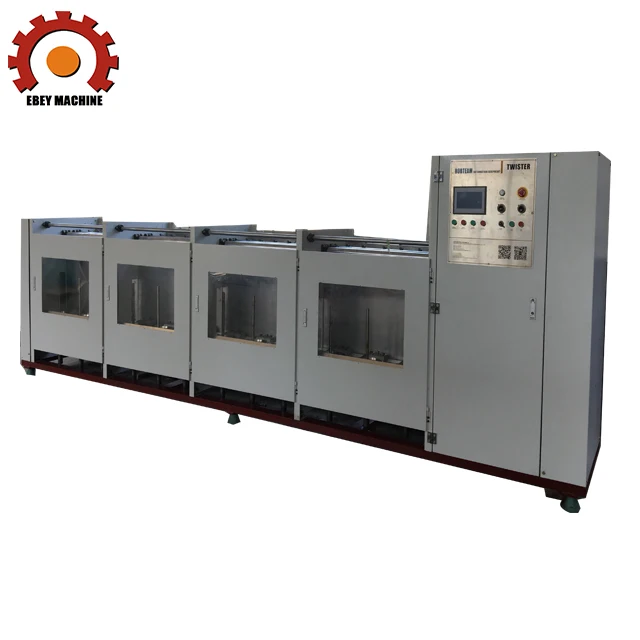

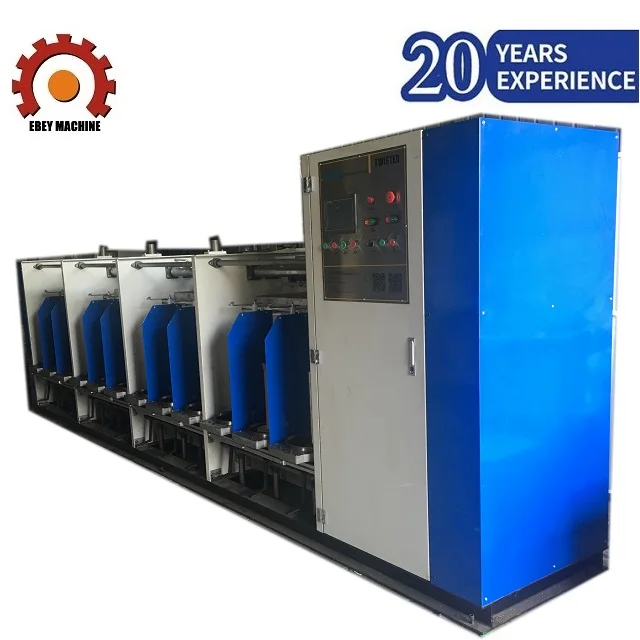

Detailed Images

wire string twisting machine Spinning Machines

twisting machine cotton twister twister

yarn twister twister

Twine String twisting machine for yarn Spinning Machines

double twist stranding twister twister


Certifications



Our Services



Pre-sales services

* Any concerns of our machine by email/phone will be replied ASAP within 24 hours

* Inquiry and consulting support

* Sample testing support

* View our factory



After-sales service

*Traning how to install the machine ,tranning how to use the machine

*Engineers are avaiable to service machinery overseas

*One year guarantee for the machine expect the spare part ,we can supply lifelong technology service to slove any problem form you .





Packaging & Shipping



FAQ

1. Q: Are you a factory or trading company? How many people work in your company?
A: We are a factory .Wenzhou Ebey machine manufacture co.,ltd is a professional maufactuer of rope making machine line to make different kinds of rope ,auto cutting and sewing machine for pp woven sack,printing machine ,reycling machine etc and now we have more than 100 years till this year .





2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, Zhejiang Province, China, about 10 minutes from Aojiang train station and 1 hour from Wenzhou airport. It’s very convenient.


3. Q: Why choose us ?
A: Ablity: we are the first company who realize full automatic system on rope production line (contain yarn making machine ,twisting machine and rope making machine etc .) in China.



4. Q: How does your factory do regarding quality control?
A: Quality is priority." We always attach great importance to quality controlling from the beginning to the end. We have our own R&D department for researching new technology and improve machine .Our factory has passed ISO9001:2000 and we have got CE certificate for our machine .





5. What's your machine's after service ?
A: We have very good after sales service: After you purchase our machine we will send our engineer to your factory to install the machine and train your worker.But our machine is easy to operate ,because our machines are full automatic control by PLC and touch screen ,normally don't need our enginner to install and debug the machine ,it can save much time and money.
